Form UI with (x-ui-* tags)

Facets modules support dynamic, user-friendly form rendering through x-ui extension fields in facets. YAML. These extensions control how inputs are displayed, validated, and interacted with, enabling smart defaults, conditional logic, API-driven dropdowns, YAML editors, and more.

This guide quickly references all supported x-ui fields, helping you build intuitive and robust configuration UIs for your modules.

Here is the table sorted alphabetically first by Category, then by Tag:

Category	Tag	Short Description
Conditional Display	`x-ui-visible-if`	Conditionally display this field only if another field has a specific value. For example, show replicaCount only if deploymentType is set to "ReplicaSet".
Dynamic Data Sources	`x-ui-dynamic-enum`	Populates a dropdown based on values from another field. For example, allow selecting a port for a health check from the list of container ports defined in the same deployment.
Dynamic Data Sources	`x-ui-output-type`	Marks the field as a special output type. For example, an Ingress upstream can be selected from available Services that export a compatible output interface.
Dynamic Data Sources	`x-ui-output`	Mark a particular field from a referenced output to be used, instead of the entire output object. For Example: Picking attributes.id from @outputs/pubsub
Dynamic Data Sources	`x-ui-api-source`	Populates dropdown options by calling a specified API endpoint and applies optional filters to retrieve and display relevant data based on the defined criteria.
Dynamic Data Sources	`x-ui-secret-ref`	Allows the field value to reference a secret defined at the project level. For example, link to a stored API key without exposing its value.
Dynamic Data Sources	`x-ui-variable-ref`	Allows the field value to reference a variable defined at the project level. For example, reuse a common region or environment name.
Dynamic Data Sources	`x-ui-typeable`	Allows a field value to be typed instead of selecting it from the dropdown values
Environment Management	`x-ui-overrides-only`	Show this field only when overriding for a specific environment. For example, a CIDR block must be set per environment and shouldn't have a default value.
Environment Management	`x-ui-override-disable`	Prevents a field from being modified by the user for any environment - ensuring that a blueprinted or default value remains intact.
Form Layout & Presentation	`x-ui-order`	Specify the rendering order of fields.
Form Layout & Presentation	`x-ui-placeholder`	Provide example input placeholder text.
Form Layout & Presentation	`x-ui-toggle`	Renders a group of fields as a collapsible section. For example, show health check settings inside a deployment only if the user chooses to enable health checks.
Form Layout & Presentation	`x-ui-artifact`	Provides a way to attach artifacts (images/zip) for any field marked with this tag.
Form Layout & Presentation	`x-ui-editor`	Enables an editor, with an option to choose language (by default YAML), for complex object fields. For example, custom values.yaml for a Helm chart deployment.
Validation & Error Handling	`x-ui-error-message`	Defines a custom error message to show when validation fails. For example, “CIDR must be a valid private IP block” for a pattern mismatch.
Validation & Error Handling	`x-ui-array-input-validation`	Defines a custom pattern and error message to show when pattern fails.
Validation & Error Handling	`x-ui-compare`	Compare the field and define the error message to show if the comparator validation fails.

Detailed Examples

Conditional Display

`x-ui-visible-if`

Conditionally shows fields based on another field’s value (User can enter multiple conditions under this flag and the field will be visible only if all the conditions are met)

readiness_timeout:
  type: integer
  title: Readiness Timeout
  default: 10
  minimum: 0
  maximum: 10000
  x-ui-placeholder: "Enter readiness timeout for the Pod"
  x-ui-error-message: "Value must be between 0 and 10000"
  x-ui-visible-if:
    field: spec.runtime.health_checks.readiness_check_type
    values: ["PortCheck", "HttpCheck", "ExecCheck"]
liveliness_timeout:
  type: integer
  title: Liveliness Timeout
  default: 10
  minimum: 0
  maximum: 10000
  x-ui-visible-if:
    - field: spec.runtime.health_checks.liveliness_check_type
    values: ["PortCheck", "HttpCheck", "ExecCheck"]
    - field: spec.runtime.health_checks.liveliness_start_up_time
    values: ["10"]

Dynamic Data Sources

`x-ui-dynamic-enum`

Dynamically populates enum values from a schema path

readiness_port:
  type: string
  title: Readiness Port
  x-ui-dynamic-enum: spec.runtime.ports.*.port
  x-ui-disable-tooltip: "No Ports Added"

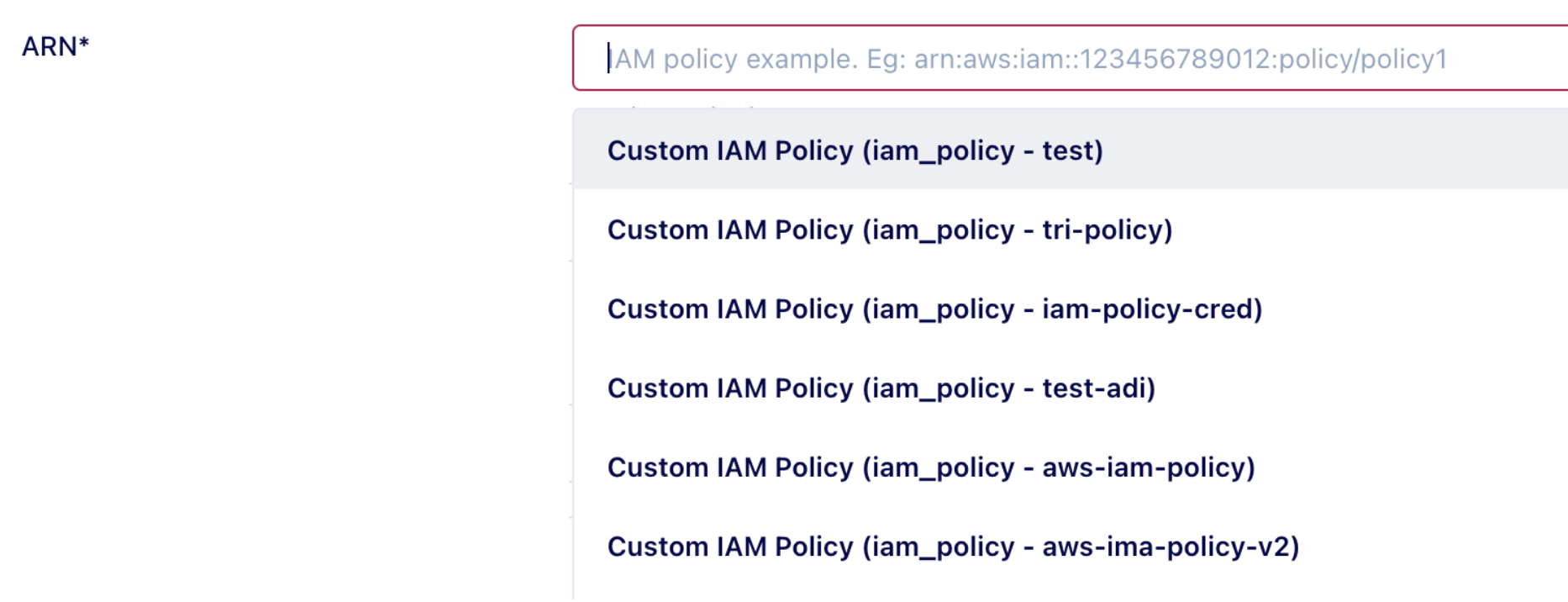

`x-ui-output-type`

Lists down all the resources whose output is of type mentioned in "x-ui-output-type".

arn:
  title: ARN
  type: string
  pattern: '^(arn:aws:iam::(\d{12}|aws):policy\/[A-Za-z0-9+=,.@\-_]+|\$\{[A-Za-z0-9._-]+\})$'
  x-ui-error-message: "Value doesn't match pattern, accepted value pattern
  x-ui-output-type: "iam_policy_arn"

`x-ui-output`

List down the "field" of all the resources whose output type is mentioned in the "type" of x-ui-output. For Example: Picking attributes.id from @outputs/pubsub

pubsub:
  title: Topic Name
  description: The topic name of the Pub.Sub
  type: string
  x-ui-output:
  	type: @outputs/pubsub
    field: 'attributes.id'

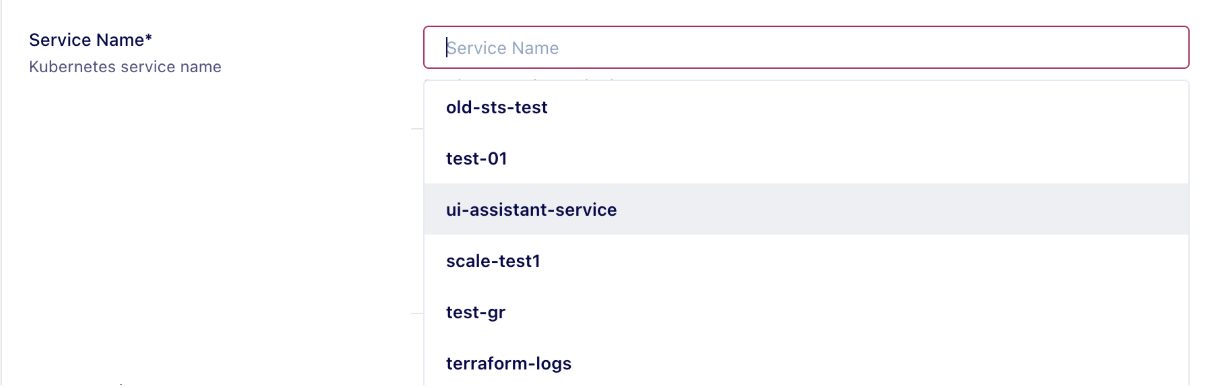

`x-ui-api-source`

List down all options by calling a specified API endpoint (and applies optional filters) to retrieve and display relevant data based on the defined criteria.

service_name:
  type: string
  x-ui-api-source:
    endpoint: "/cc-ui/v1/dropdown/stack/{{stackName}}/resources-info"
    method: GET
    params:
      includeContent: false
      labelKey: resourceName
      valueKey: resourceName
      valueTemplate: "${service.{{value}}.out.attributes.service_name}"
      filterConditions:
      	- field: resourceType
      	value: service

`x-ui-secret-ref`

Allows referencing or creating secrets (this flag shows a dropdown along with capability to type as well).

db_password:
  type: string
  x-ui-secret-ref: true

`x-ui-variable-ref`

Allows referencing or creating variables (this flag shows a dropdown along with capability to type as well).

db_username:
  type: string
  x-ui-variable-ref: true

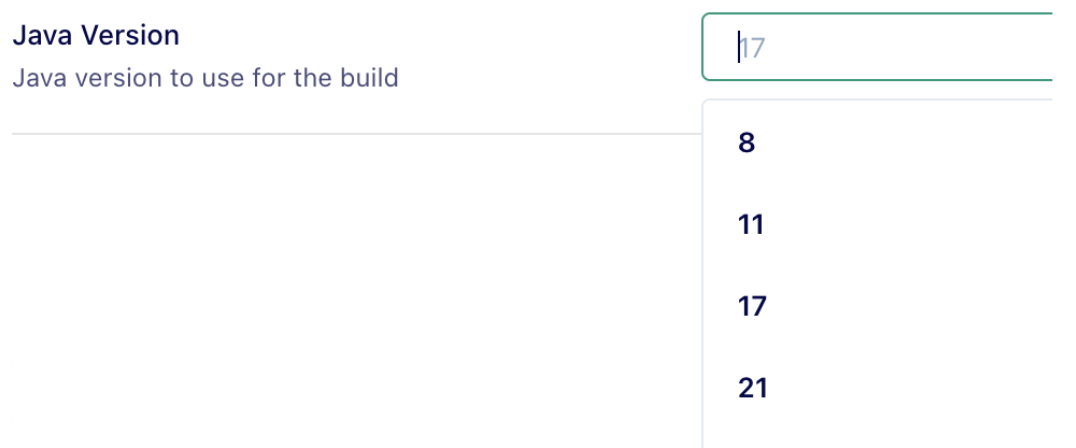

`x-ui-typeable`

Allows a field value to be typed instead of selecting it from the dropdown values

java_version:
  title: Java Version
  type: string
  description: Java version to use for the build
  default: '17'
  enum:
    - '8'
    - '11'
    - '17'
    - '21'
  x-ui-typeable: true

Environment Management

`x-ui-overrides-only`

Only visible at the environment level and not visible at the blueprint level

cidr:
  type: string
  default: "defaultValue"
  x-ui-overrides-only: true

`x-ui-override-disable`

Only visible at the blueprint level and not visible at the environment level

restart_policy:
  type: string
  title: Restart Policy
  description: Restart Policy- Always, OnFailure, Never
  x-ui-override-disable: true
  enum:
  - Always
  - OnFailure
  - Never

Form Layout & Presentation

`x-ui-order`

Controls the exact order of rendered fields.

x-ui-order:
  - restart_policy
  - db_password
  - memory

`x-ui-placeholder`

memory:
  type: string
  title: Memory
  x-ui-placeholder: "Enter Memory (e.g., 1Gi or 512Mi)"

`x-ui-toggle`

Sets value for collapsible groups. If true, the group is collapsed by default every time the form is rendered.

cloud_permissions:
  type: object
  title: Cloud Permissions
  description: Assign roles, define access levels
  x-ui-toggle: false
  properties:
    aws:
    type: object
    title: AWS
    x-ui-toggle: true

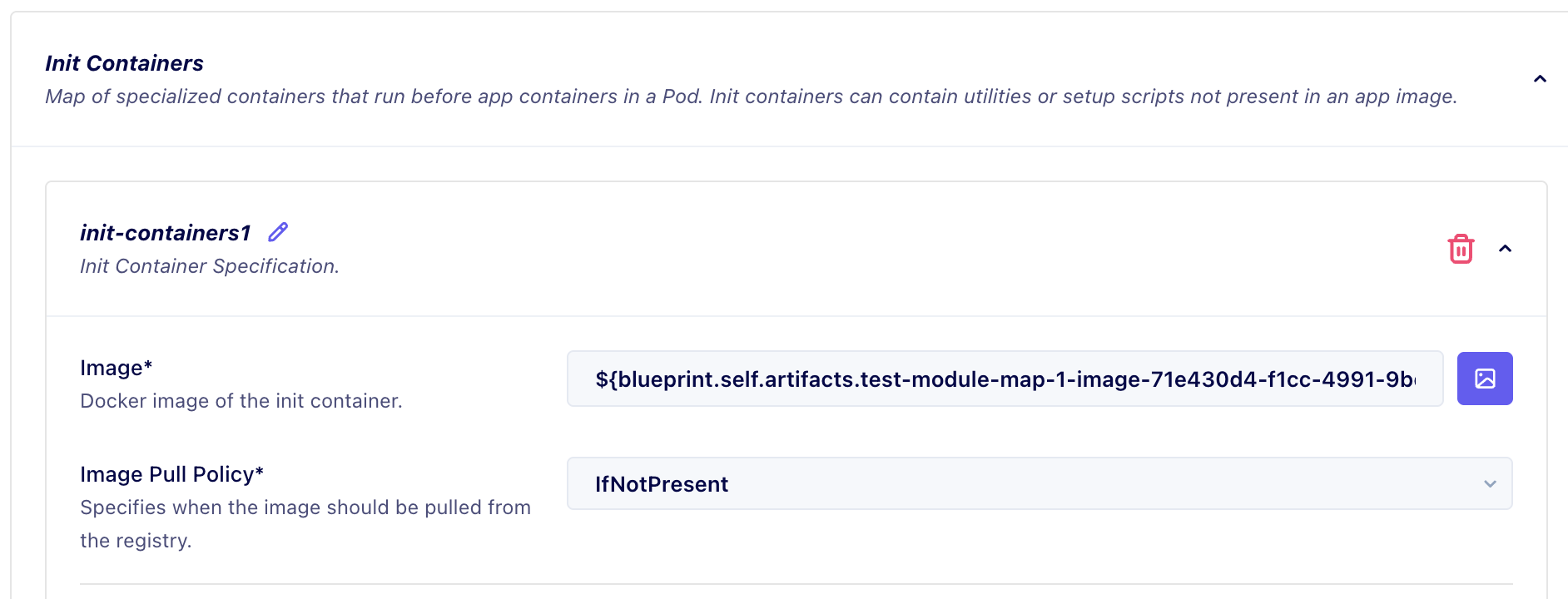

`x-ui-artifact`

Provides a way to attach images in all environments (based on the CI/CD Flow set at the project level) for any field marked with this tag.

init_containers:
title: Init Containers
type: object
	image:
  	type: string
  	title: Image
  	description: Docker image of the init container.
  	x-ui-artifact: docker_image

`x-ui-editor`

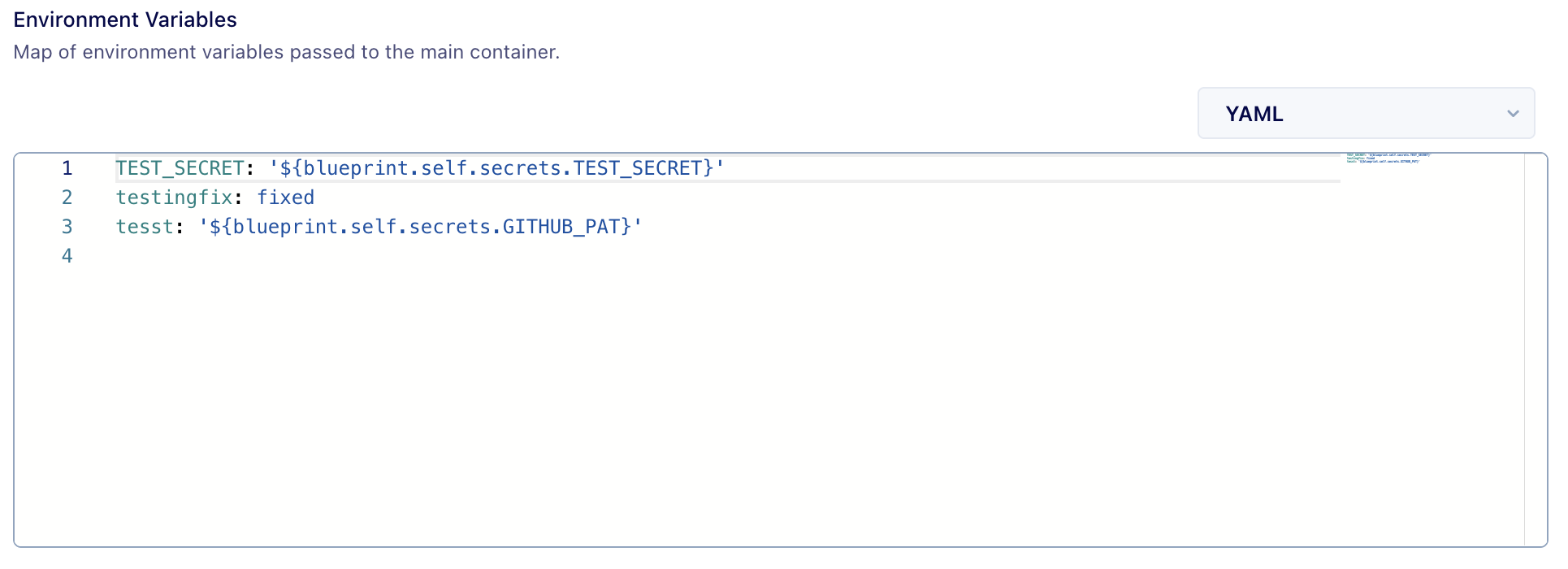

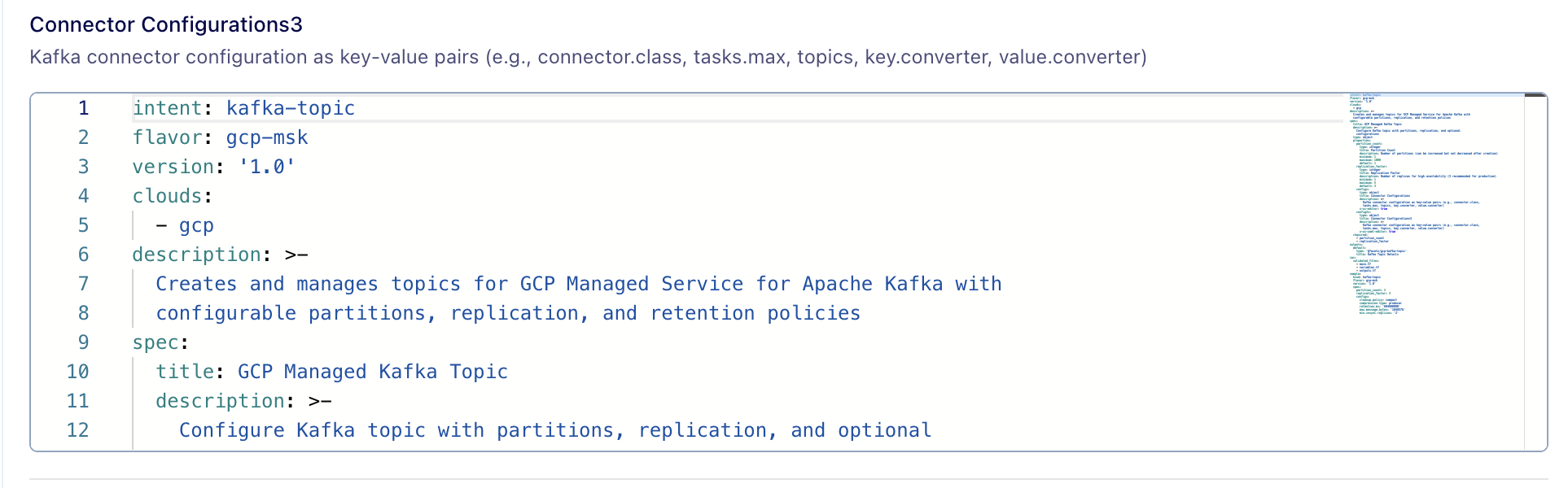

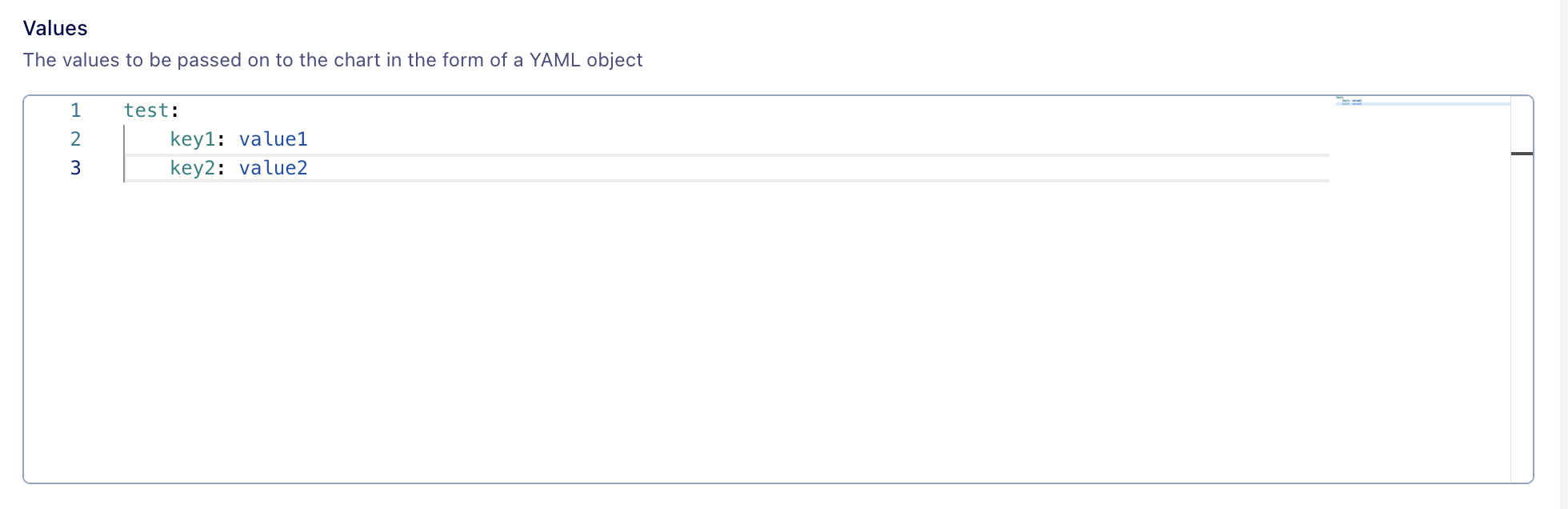

Custom editor (with support of multiple languages to choose from) for object-type fields. Note: Earlier this tag wasx-ui-yaml-editor which only supports YAML

 env:
   title: Environment Variables
   description: Map of environment variables passed to the main container.
   type: object
   x-ui-editor: true

Validation & Error Handling

`x-ui-error-message`

Customises error messages on validation.

memory:
  type: string
  pattern: "^\\d+(Mi|Gi)$"
  x-ui-error-message: "Invalid memory format. Use Gi or Mi."

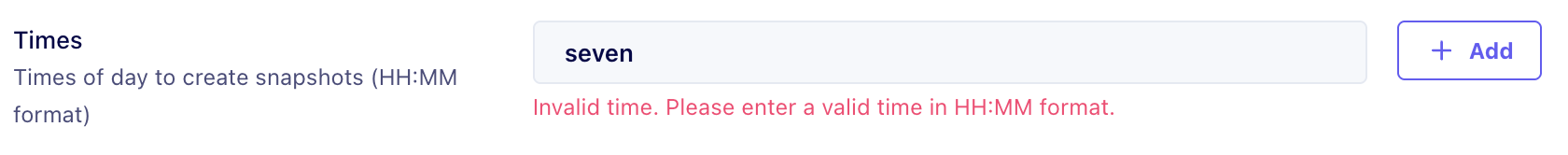

`x-ui-array-input-validation`

If any field with type "array", then validation can be put on each item of the array by defining pattern and error message inside this field.

times:
  type: array
  x-ui-array-input-validation:
  	pattern: "^([0-1]?[0-9]|2[0-3]):[0-5][0-9]$"
  	error: "Invalid time. Please enter a valid time in HH:MM format."
  items:
    type: string

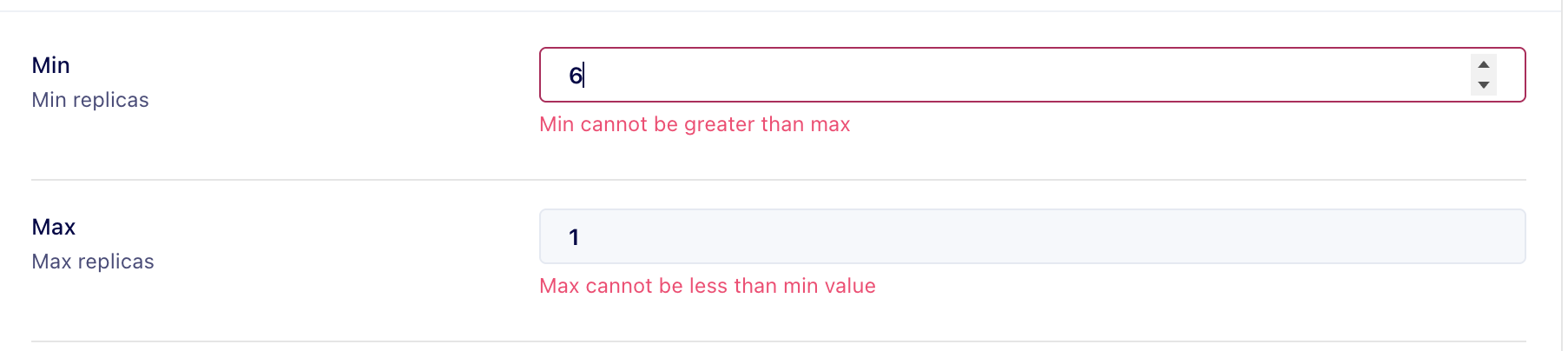

`x-ui-compare`

If two fields need to be compared using operators such as >, >=, <, <= , enable this flag. If the provided values do not satisfy the comparison, the specified error message will be displayed.

min:
  type: integer
  title: Minimum
  minimum: 1
  maximum: 200
  x-ui-compare:
    field: spec.runtime.autoscaling.max
    comparator: '<='
    x-ui-error-message: 'Min cannot be greater than max'

Return to top
